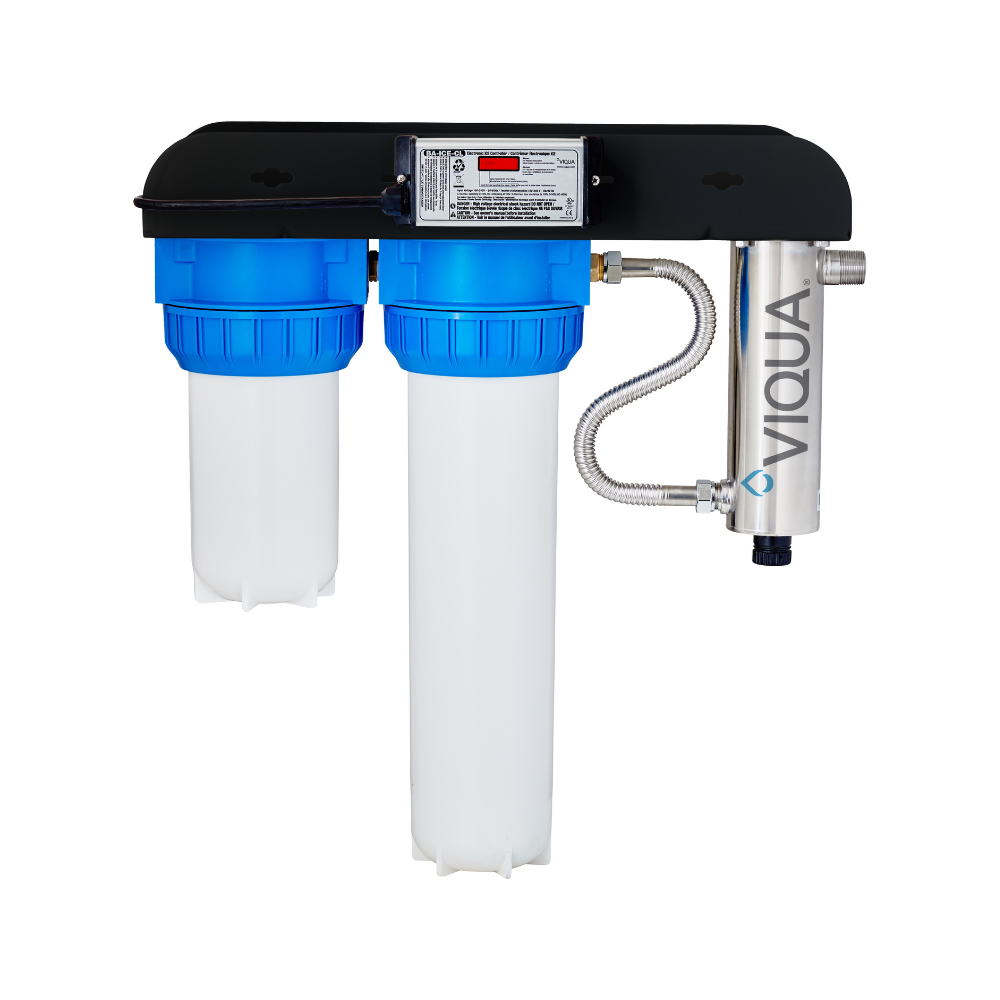

Viqua VH200-F12 Ultraviolet (UV) System

• Capable of inactivating common waterborne pathogens, including cryptosporidium, giardia, pathogenic E. coli (STEC/VTEC), campylobacter, legionella, salmonella, shigella, norovirus, enterovirus, and hepatitis A virus*
• Specially designed and tested UV lamps that provide consistent, reliable ultraviolet output over the entire life of the lamp (9,000 hours) to ensure continuous treatment
• Simple to maintain and service, allowing for easy lamp and cartridge replacement
• Safety-Loc™ connector with interlock that ensures power is disconnected before lamp can be removed
• Durable stainless-steel chamber to prolong life and eliminate UV light degradation
• Premium three-piece filter housing for easy removal of the sump
• Comes with a sediment filter to remove commonly found particles in water and a carbon block filter to reduce unpleasant odors and color
• NSF/ANSI 55 Class B certified for supplemental UV disinfection
• UL electrical safety certified for use in both the U.S. and Canada

The VIQUA VH200-F12 is a compact whole-home UV water purification system designed to provide safe, chemical-free protection from harmful microorganisms like bacteria, viruses, and cysts. Ideal for homes on well or municipal water, this system combines a durable stainless steel UV chamber with integrated pre-filtration to remove sediment and improve water clarity for maximum UV disinfection performance. With a long-lasting 9,000-hour UV lamp, easy lamp replacement, and minimal maintenance, the VH200-F12 delivers reliable, clean drinking water to every tap in your home. A trusted solution for homeowners looking for effective UV water treatment and peace of mind.

• Flow rate @30 mJ/cm²: 9 GPM (34 LPM), 40 mJ/cm²: 7 GPM (26 LPM)
• System dimensions: 25.1″ × 11.5″ × 18.4″ (63.75 cm × 29.21 cm × 46.74 cm)
• Controller dimensions: 7.25″ × 3.25″ × 2.5″
• Power consumption: 35 W, 100–240 V (50/60 Hz)
• Inlet port: 3/4″ FNPT
• Outlet port: combo 3/4″ FNPT / 1″ MNPT
• Maximum operating pressure: 125 psi (8.62 bar)
• Water temperature range: 2–40 °C (36–104 °F)
• Chamber material: 304 stainless steel
• Filters included: 10″ sediment + 20″ carbon filter
• Lamp life: 9,000 hours with visual and audible replacement alerts

• Viqua VH200-F12 Spec Sheet

• 1 x Viqua VH200-F12 Ultraviolet (UV) System
