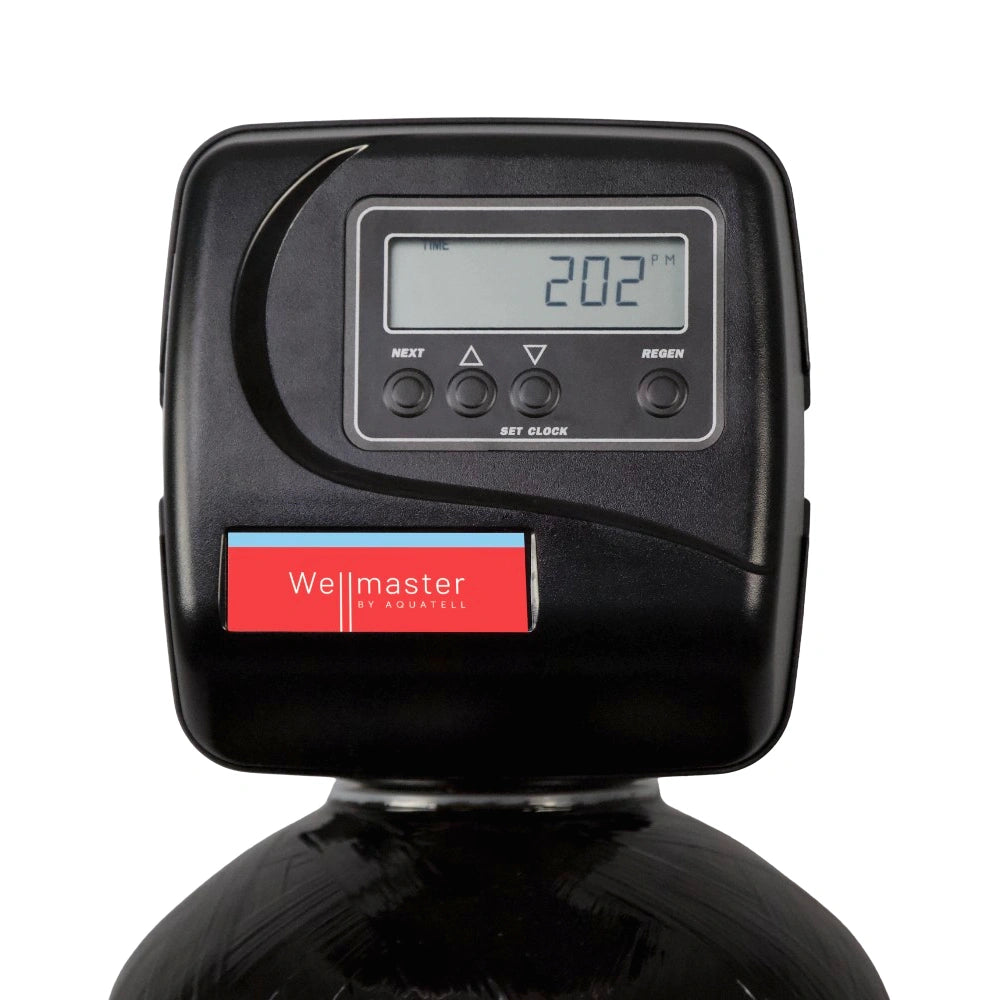

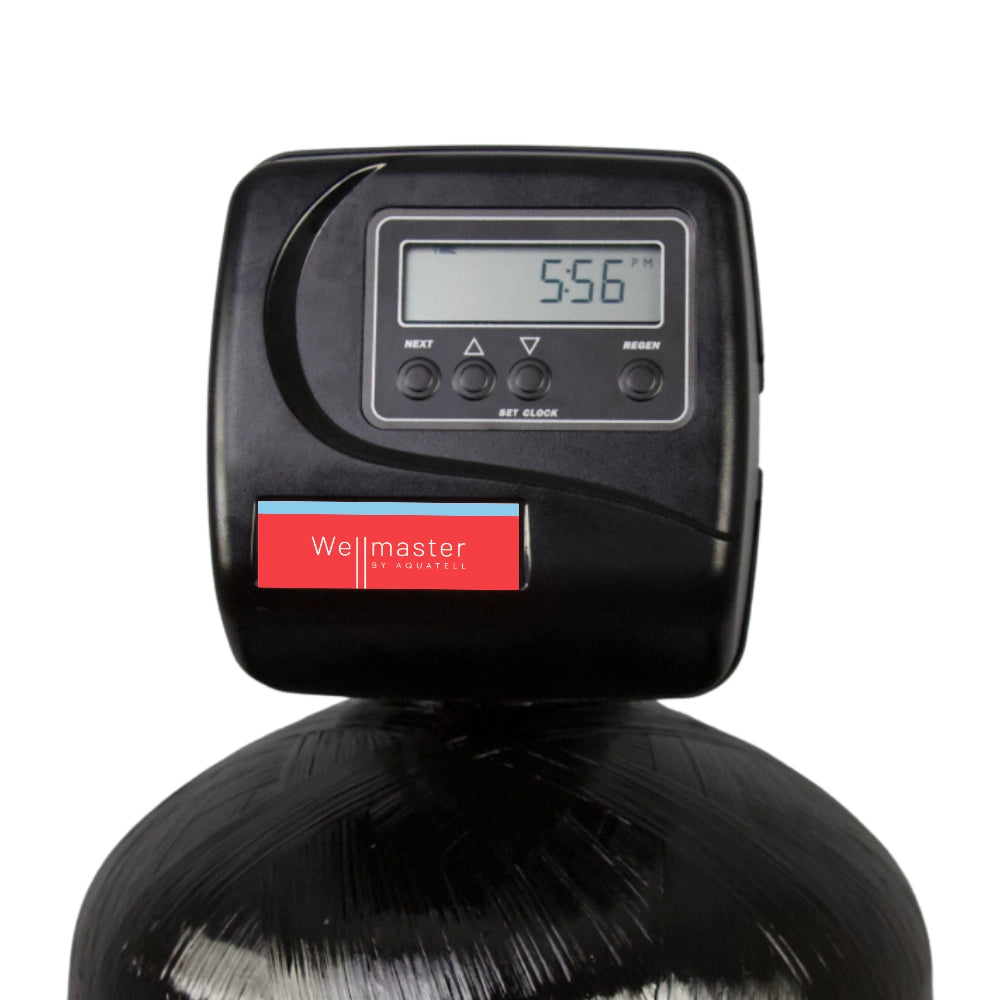

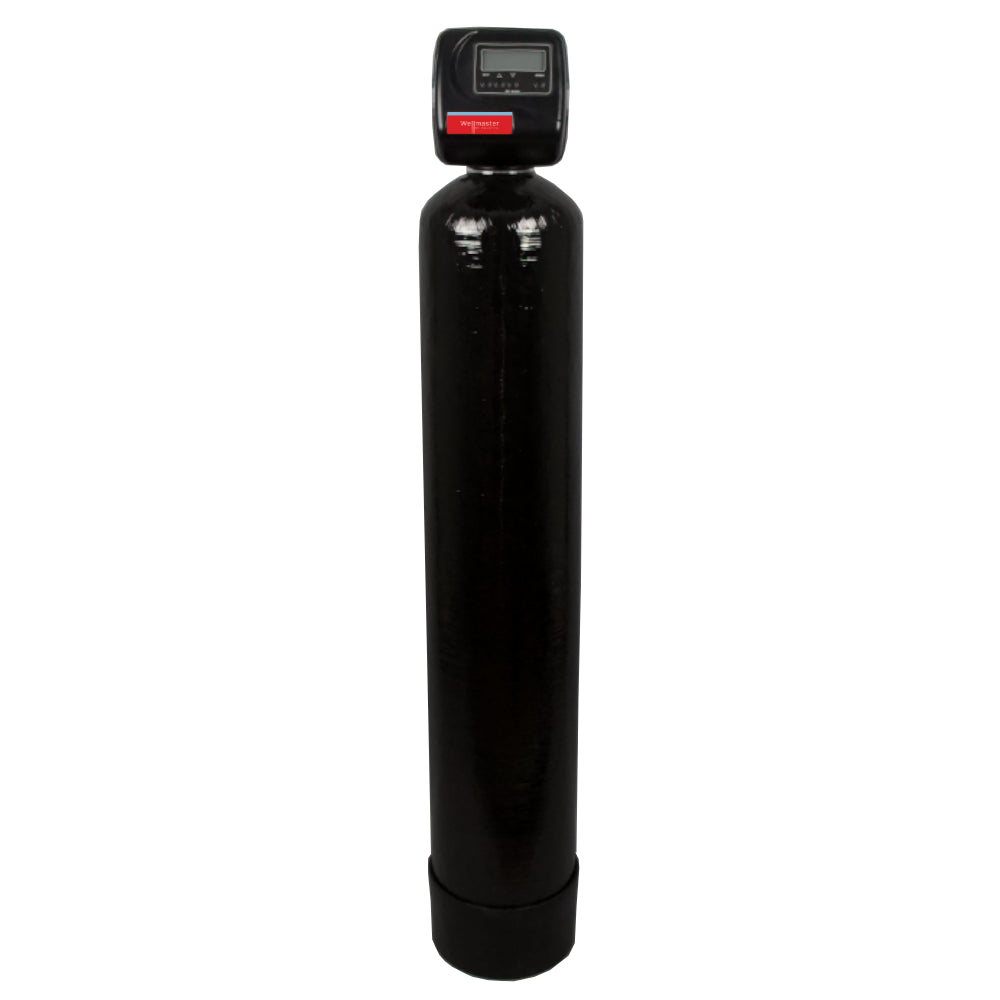

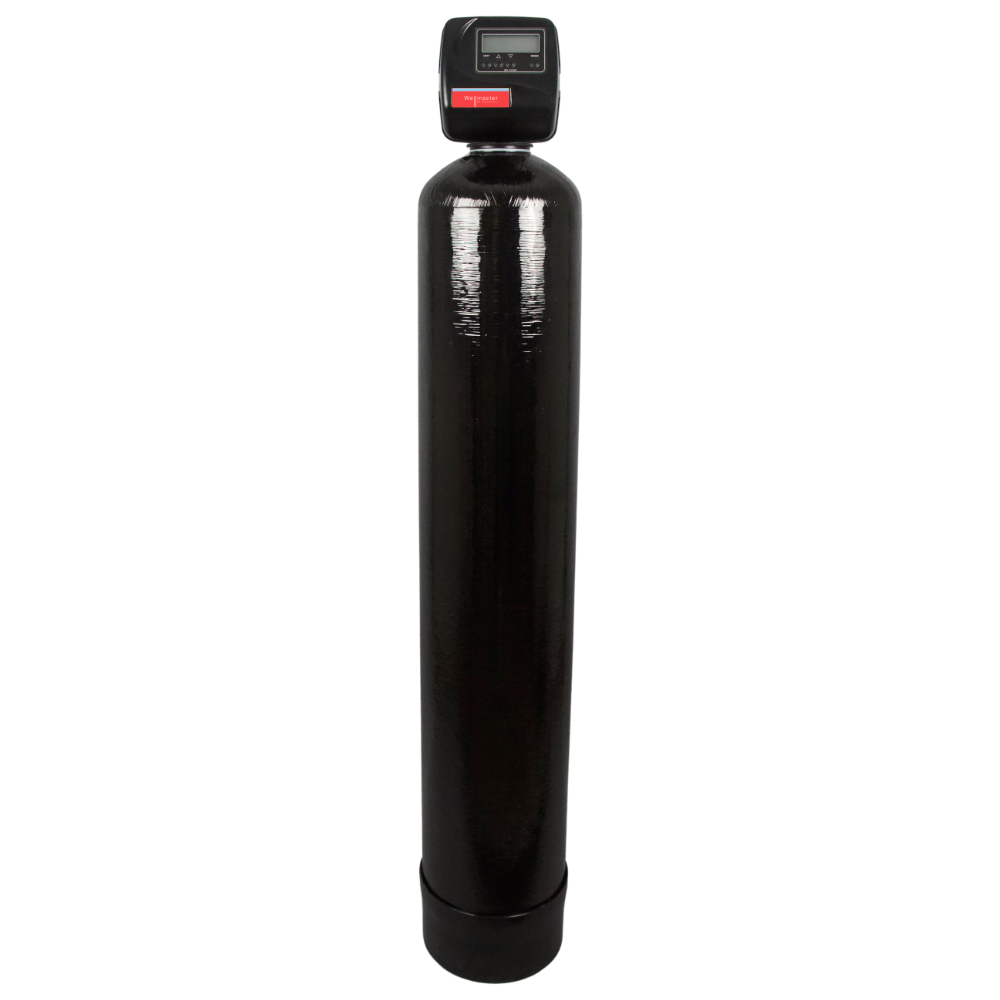

Wellmaster Water Softener

• The perfect softener for very hard well water or where iron+manganese is present
• Vortech® tank for resin scrubbing

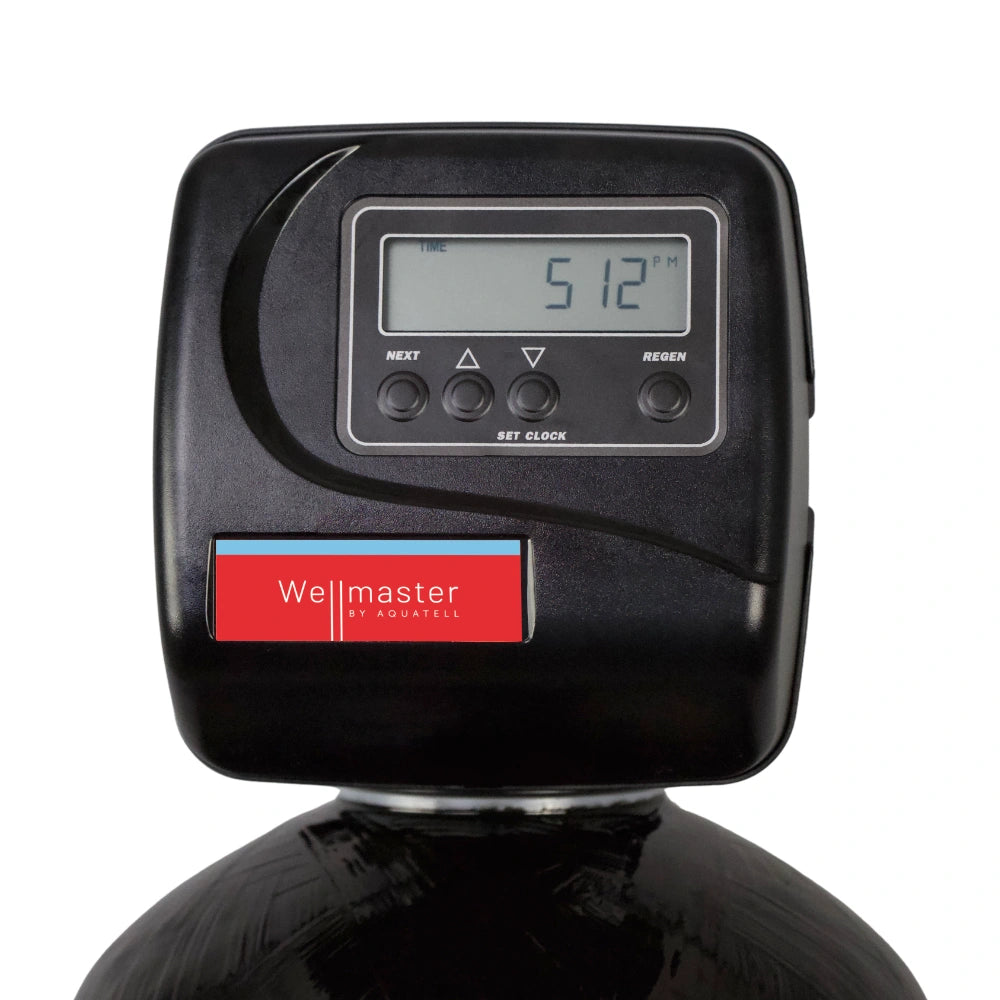

• Clack™ Control Valve
• Made-In-USA Resin

The Wellmaster water softener is Aquatell's answer to challenging well water conditions that demand a heavy-duty response. This softener will perform in extreme hardness conditions and where iron and manganese levels are very high. HV (High Velocity) softening resin and the Vortech® tank are at the heart of this over-achiever. This system will handle water with hardness values up to 85 grains per gallon and 20mg/L of combined iron + manganese* and unlike conventional resins, it will not become fouled in the process.

• Designed & Built in London, Ontario, Canada
• Factory Programmed
• Demand Regenerated
• True 1" Throughput for Max Flow
• Max Softener Efficiency Rating (SER): 4,000 Grains / Pound (4 pounds of salt for 16,000 grains)
• Challenging Conditions Efficiency (SER): 2,525 Grains / Pound (9.5 pounds of salt for 24,000)
• Soft Water Brine Tank Refill
• Service Flow Rate of 10 gpm for hardness less than 35 gpg
• Service Flow Rate of 7.5 gpm for hardness less than 65 gpg
• Service Flow Rate of 5.0 gpm for hardness less than 85 gpg
• 10 mg/L (PPM) of Iron + Manganese*
• Brine Tank Dimensions: 15" x 17" x 35"
• 200 Pound Salt Capacity (about 3 standard bags of salt)
• 12-hour Clock Battery Backup
• Softener Retains Settings Even If Unpowered For Months
• 110V A/C Adapter
• All Components are NSF Standard 61 Certified
• Shipping Box 1: 9.25" x 9.25" x 35.5" - 61 lbs
• Shipping Box 2: 11.5" x 11.5" x 35.5" - 21 lbs

• Softener Selector Online Configurator
• Ultimate Guide to Choosing a Water Softener
• Unpacking, Installation, and Startup Instructions
• Water Softener Comparison Chart

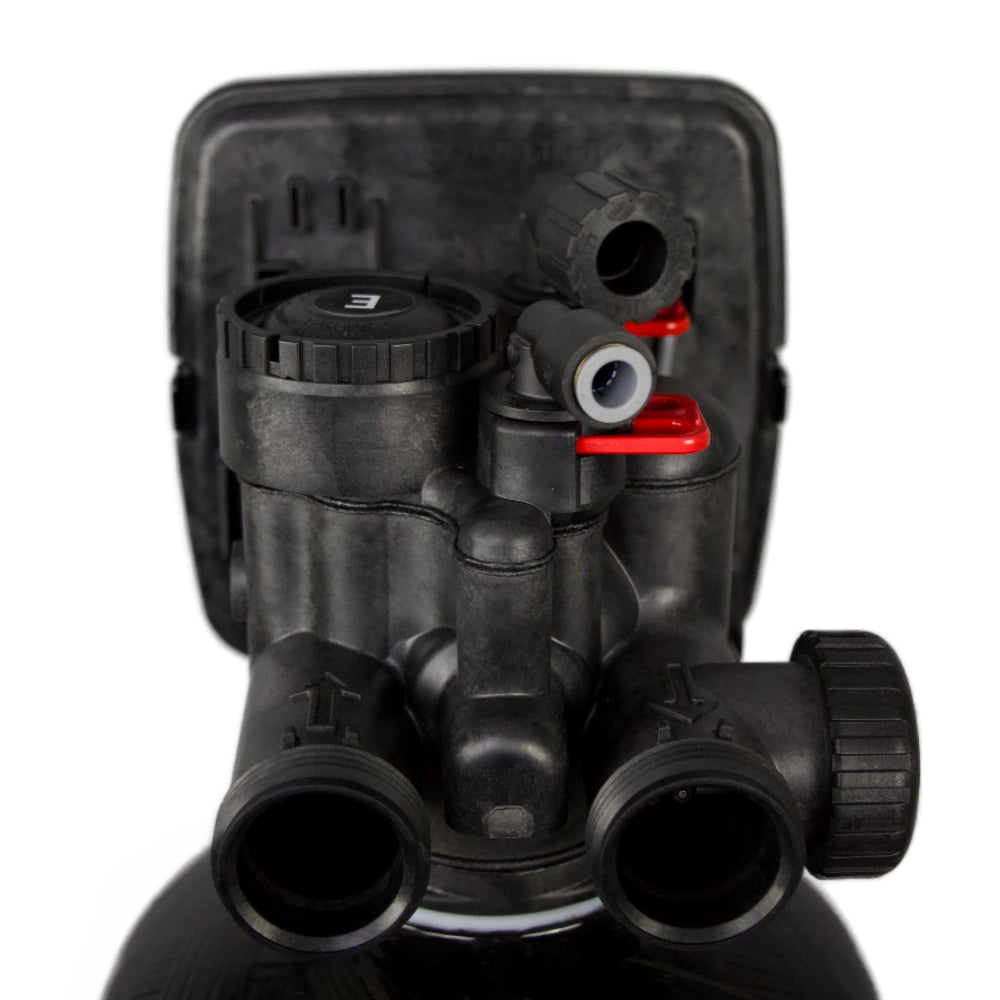

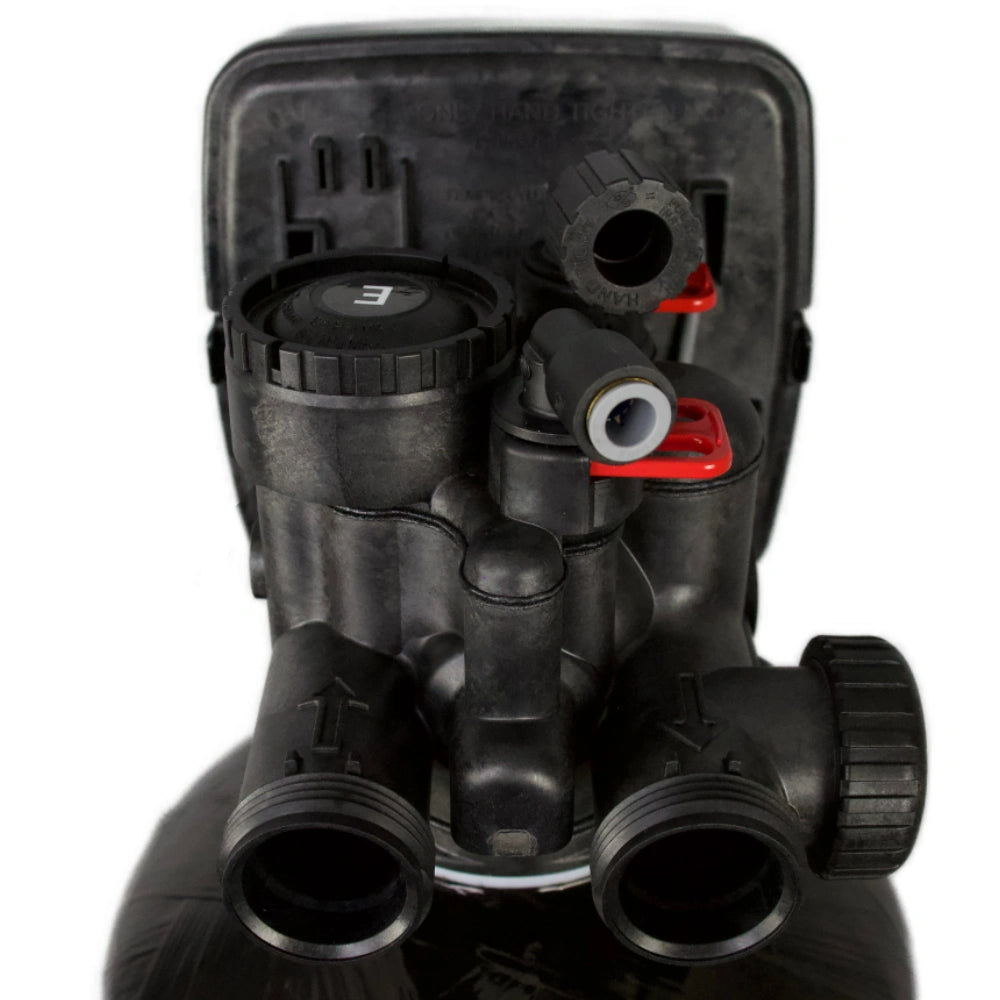

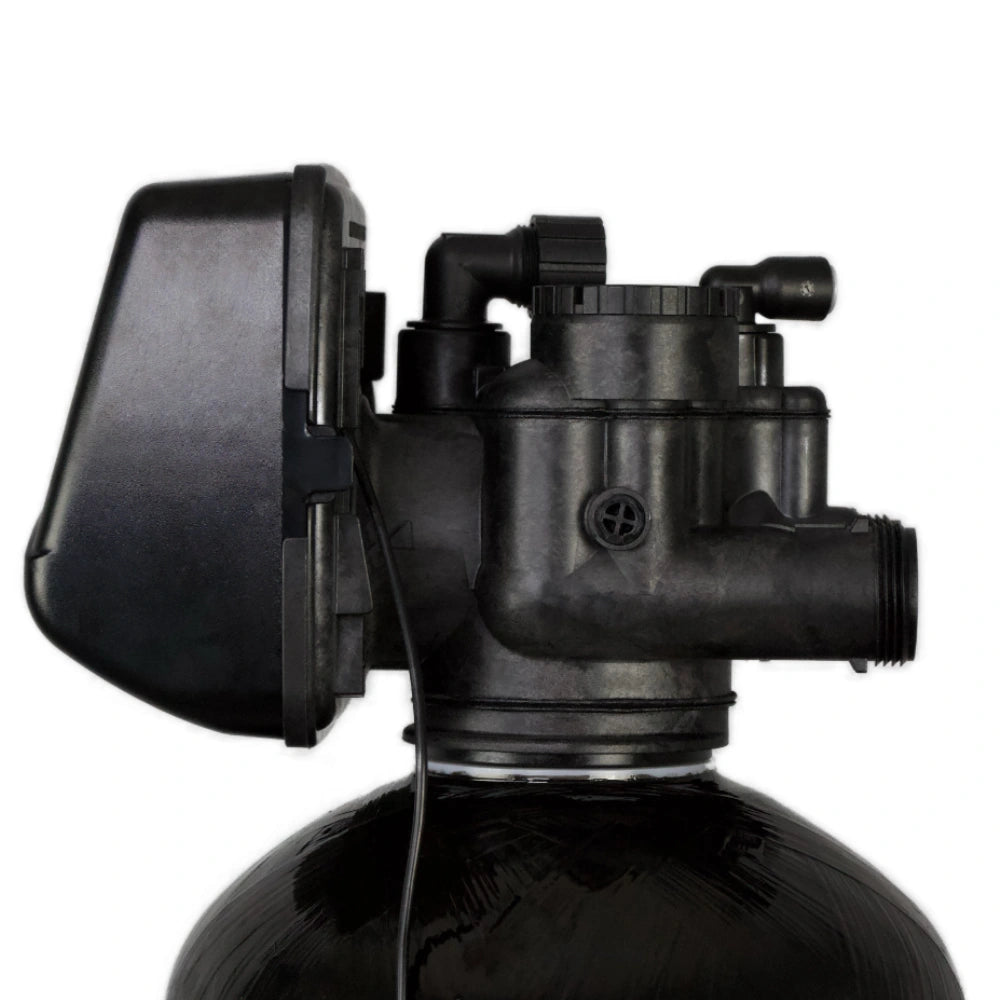

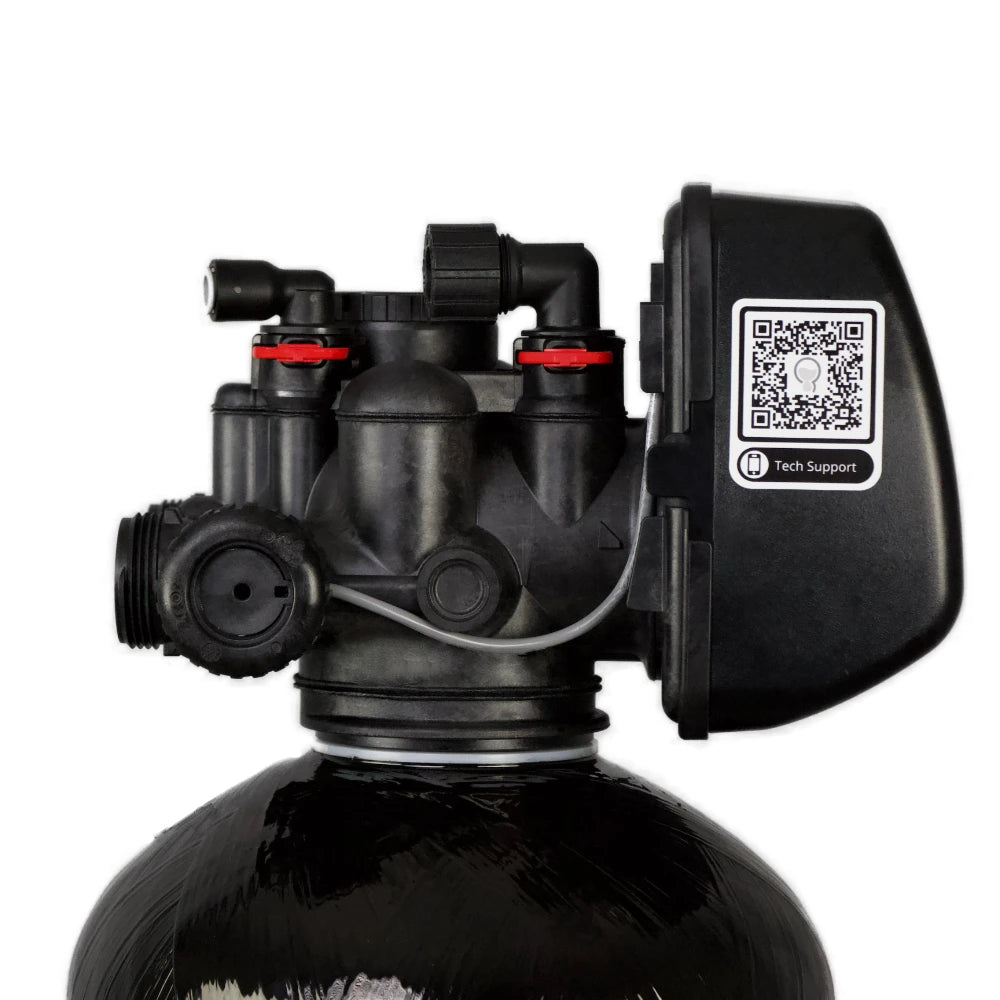

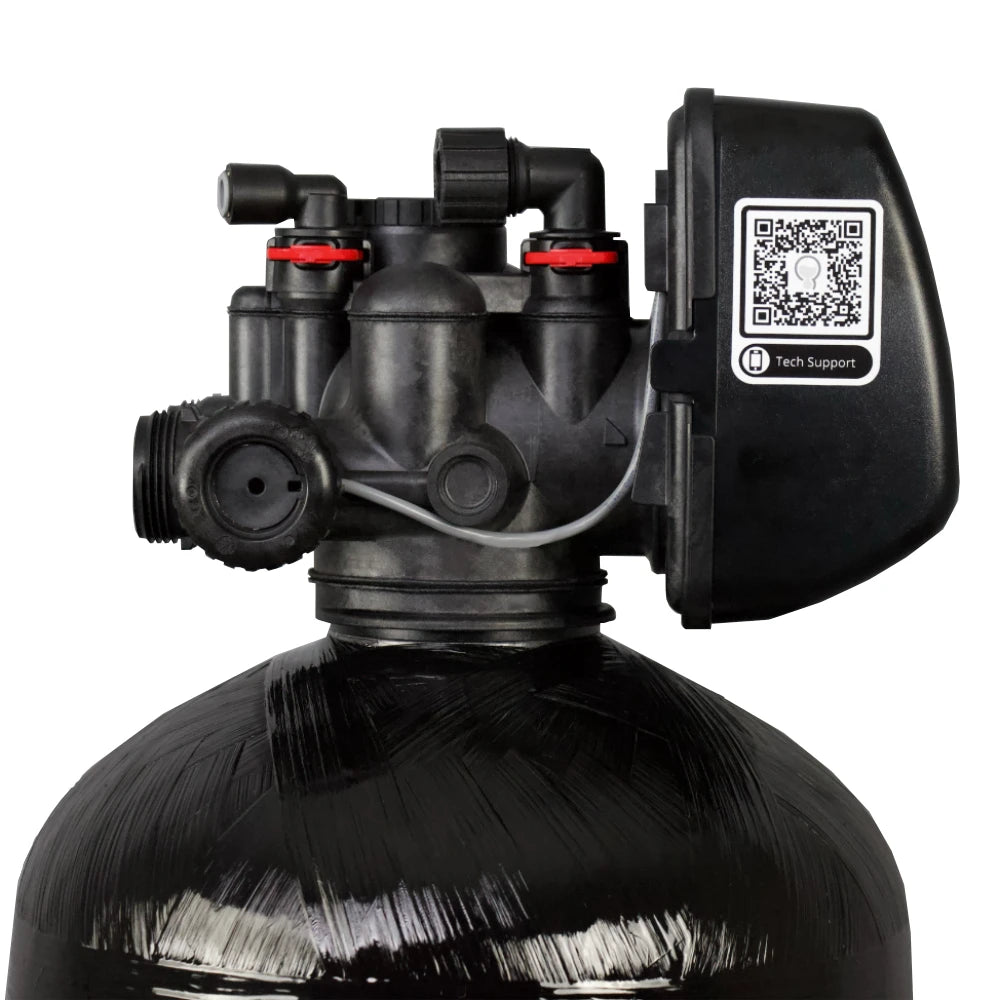

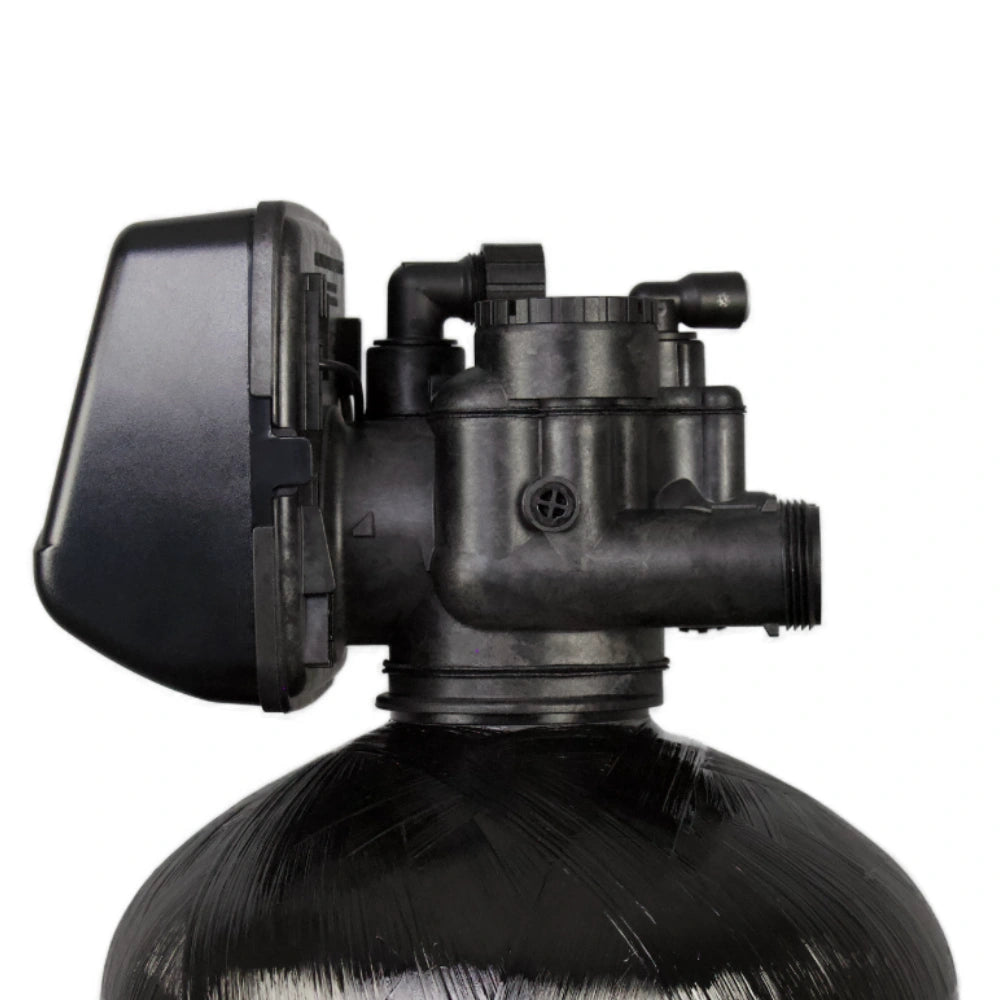

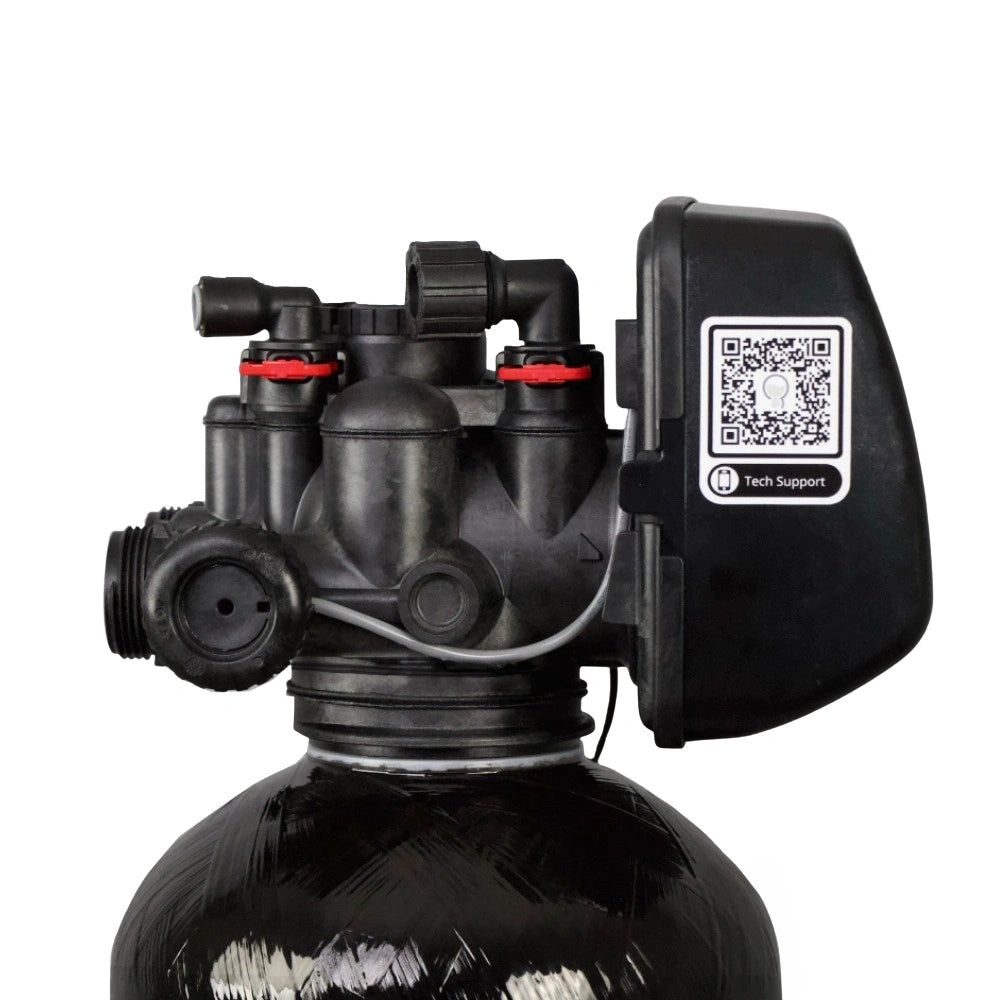

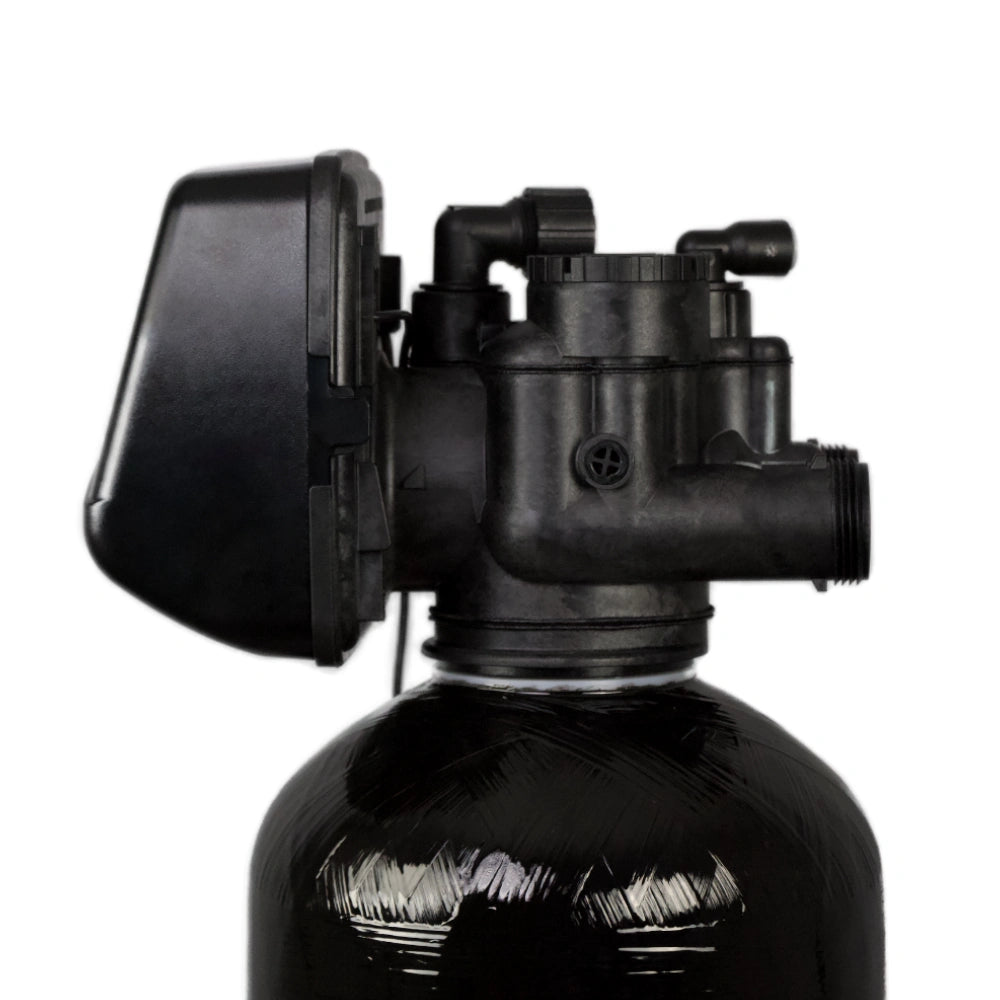

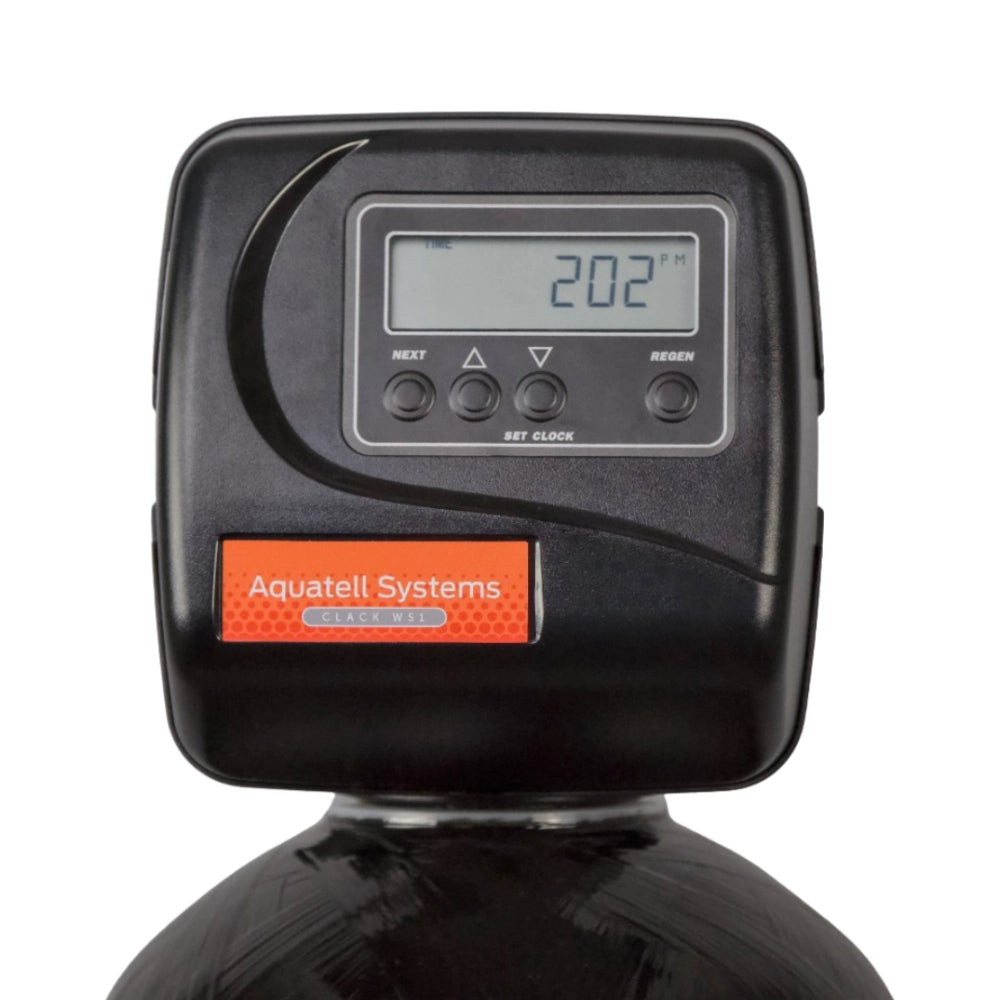

• Clack™ WS1 Downflow Control Valve

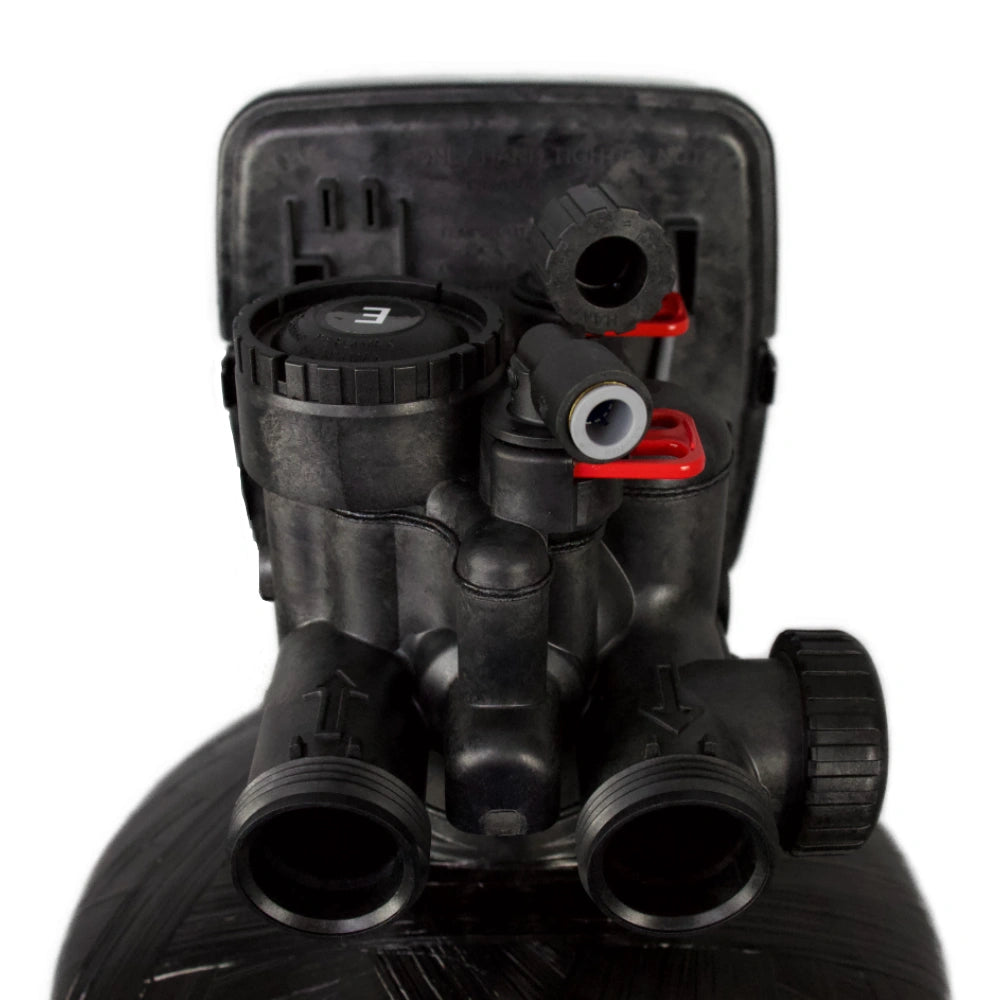

• Bypass Valve + Choice of Plumbing Connectors
• High-Durability Turbine Meter
• 1.0 Cubic Foot of 10% USA-Made High-Velocity Resin
• Top Basket (Prevents Accidental Resin Loss)

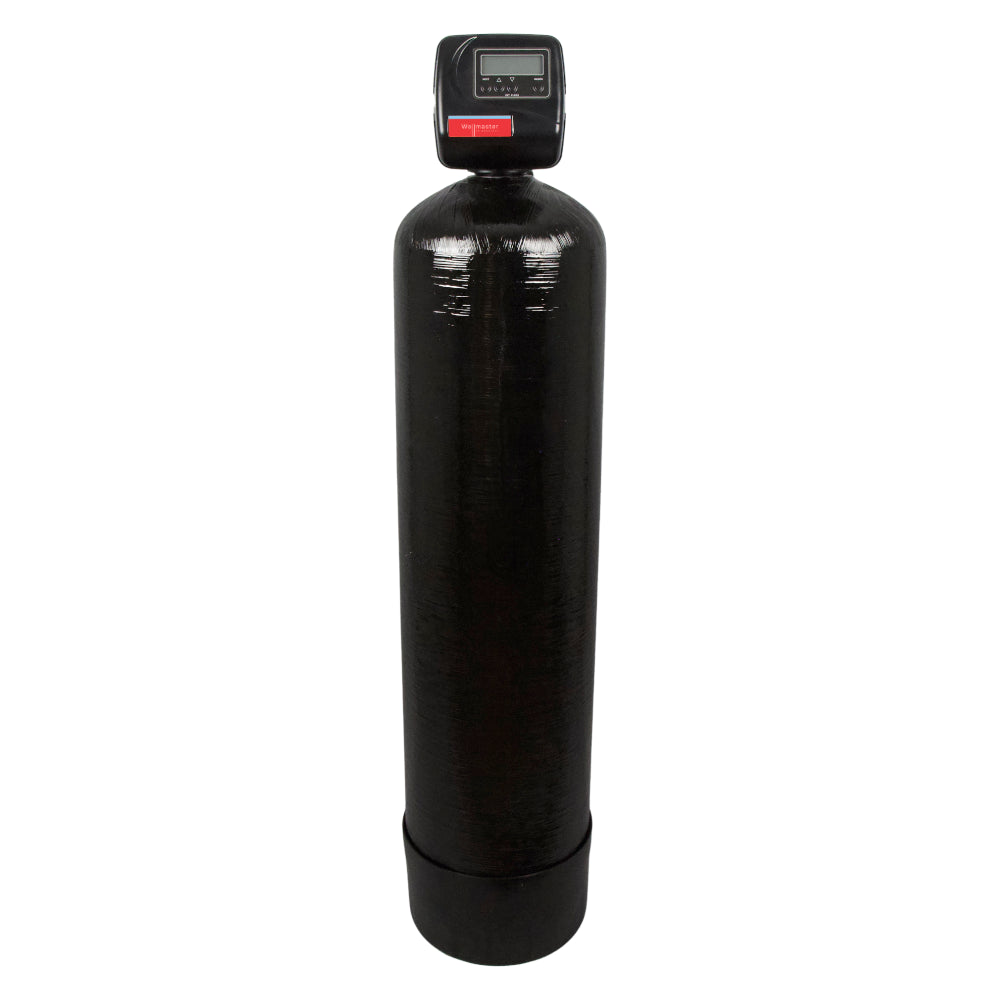

• 9" x 48" Vortech® Media Tank w Riser Tube
• 15" x 17" x 35" Clack Brine Tank
• Brine Well  with Safety Float
• Brine Tank Floor Drain Fitting
• 5' Brine Line
• Silicone Lubricant

• 5 year top-to-bottom warranty

This warranty is for manufacturer's defects only. Certain water softener components, such as the main piston, seal & spacers, and the brine valve will experience wear and tear during normal softener usage and may not be covered. Resin that has experienced unusual application conditions may not be covered. See water softener warranty details here.
