    AQWS1-1.5-E1M

    Capacity
    Plumbing Connectors

    Highlights

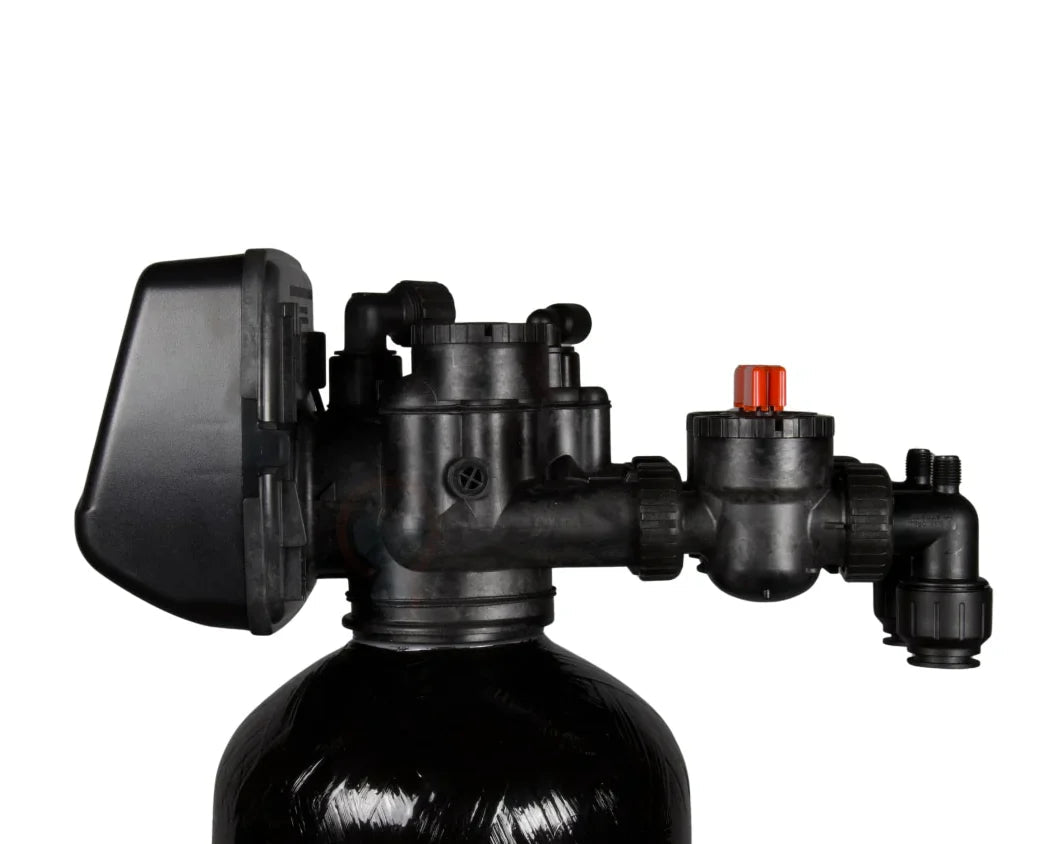

    • Clack™ WS1 "EE" Control Valve
    • Rugged & Reliable Performance
    • 10% Cross-Linked Resin

    Description

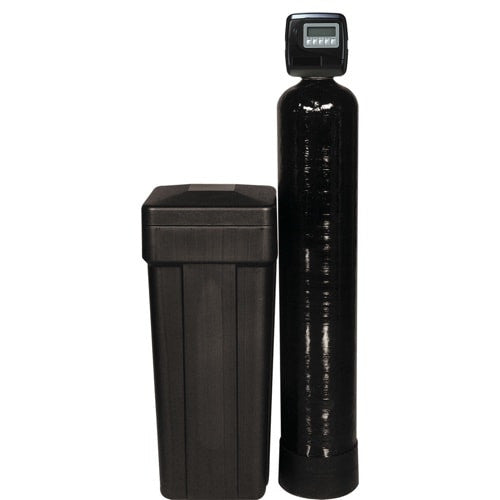

    The Aquatell Clack™ water softener features the rugged and feature-rich Clack WS1 metered electronic control valve, Structural media tanks, brine tank safety float, and 10% cross linked resin. This build uses the Clack WS1EE control board which offers maximum programming flexibility for top performance in all water conditions. The 1.0 cubic foot size ships fully loaded, while the larger sizes ship with the media in boxes and we provide a funnel for easy filling.

    Tech Specs

    • Softener Efficiency Rating (SER): 4,000 grains / pound
    • Install Location: Point of Entry
    • Softener Tank Dimensions: 9" x 48" (1.0 cubic foot), 10" x 54" (1.5 cubic feet), 12" x 52" (2.0 cubic feet), 13" x 52" (2.5 cubic feet), 14" x 65" (3.0 cubic feet) - add 7.9" for control valve height
    • Brine Tank Dimensions: 15" x 17" x 35" (includes lid, dimensions at base slightly smaller)
    • 200+ pound salt capacity (about 4.5 of the standard bags of salt)
    • Electrical Requirements: 110V Standard

    Product Resources

    In The Box

    • Clack WS1EE valve with digital controls
    • Fiberglass resin tank (black)
    • Bypass valve
    • Brine tank (black)
    • Brine tank safety float with Push-To-Connect Fitting
    • Top basket (prevents loss of resin)
    • Plumbing connectors chosen
    • Brine Line

    Product Warranty

    • 5 years top-to-bottom warranty

    This warranty is for manufacturer's defects only. Certain water softener components, such as the main piston, seal & spacers, and the brine valve will experience wear and tear during normal softener usage and may not be covered. Resin that has experienced unusual application conditions may not be covered. See water softener warranty details here.




    DIY Installation - FAQS

    Yes, many homeowners and Aquatell customers successfully install their own water softeners, especially if they’re comfortable cutting into a water line and making secure, leak-free connections.

    The best connector is the one that matches your home’s existing plumbing size. This minimizes the number of extra plumbing connectors you’ll need to purchase. For DIY installations, “flex” connectors and connectors with push-to-connect (PTC) fittings can save tons of time and effort. Make sure you fully understand how to measure your existing pipes to ensure you match the sizing correctly.

    No, it doesn't, however, all manufacturer documentation, including the manual, should be reviewed prior to installation, which typically includes the manufacturer’s warranty details. If anything remains unclear after reviewing manufacturer documentation, don’t hesitate to reach out to us for assistance. Also, ensure local plumbing codes are followed.

    Most first-time DIY installers should plan for roughly 2–4 hours from start to finish, including shutting the water down, making the connections, and walking through a first regeneration/backwash. If you’re replacing an existing system and are already comfortable doing basic plumbing work, it will often be a shorter job since all necessary plumbing connections are already present and accessible.
